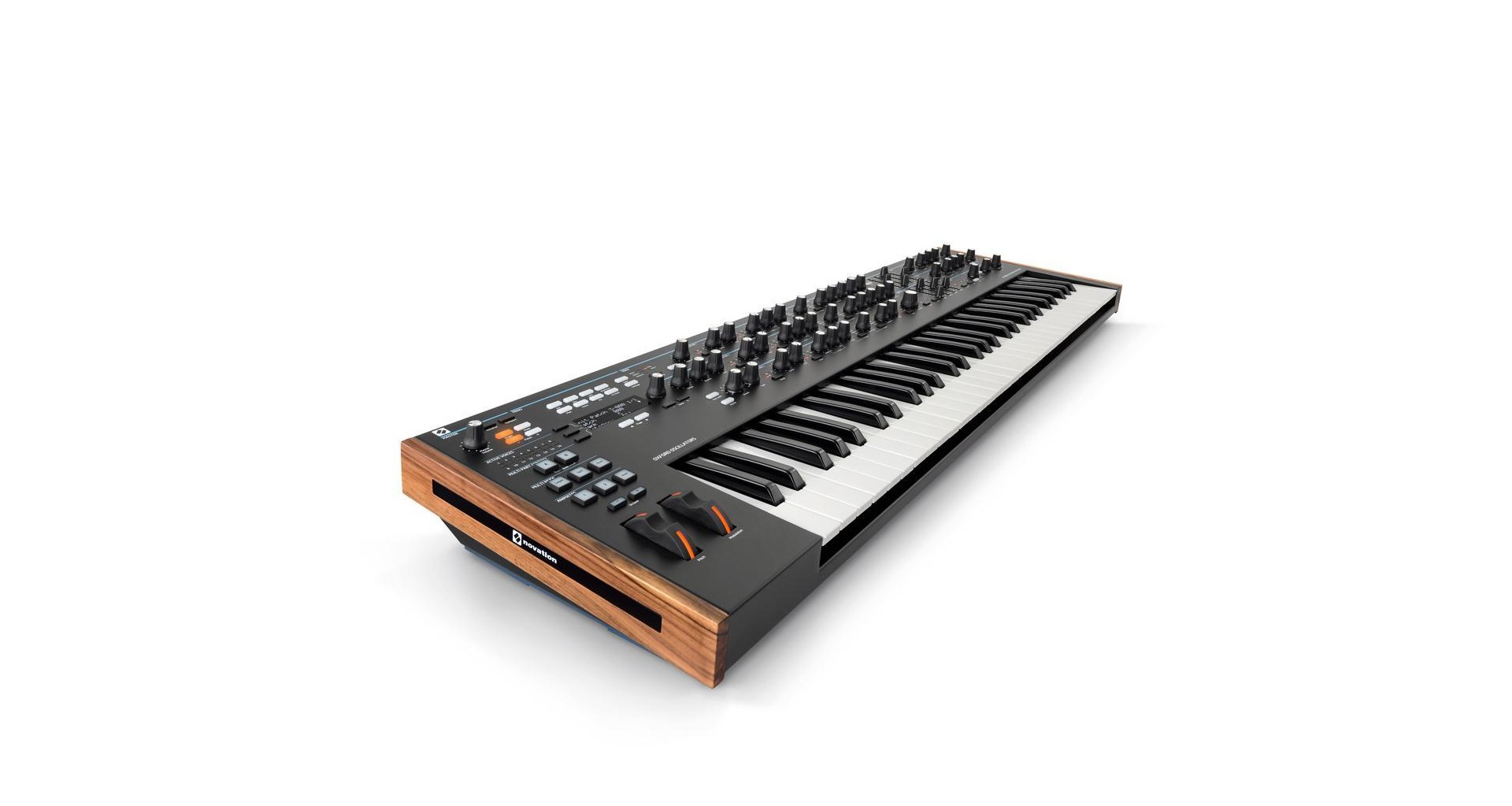

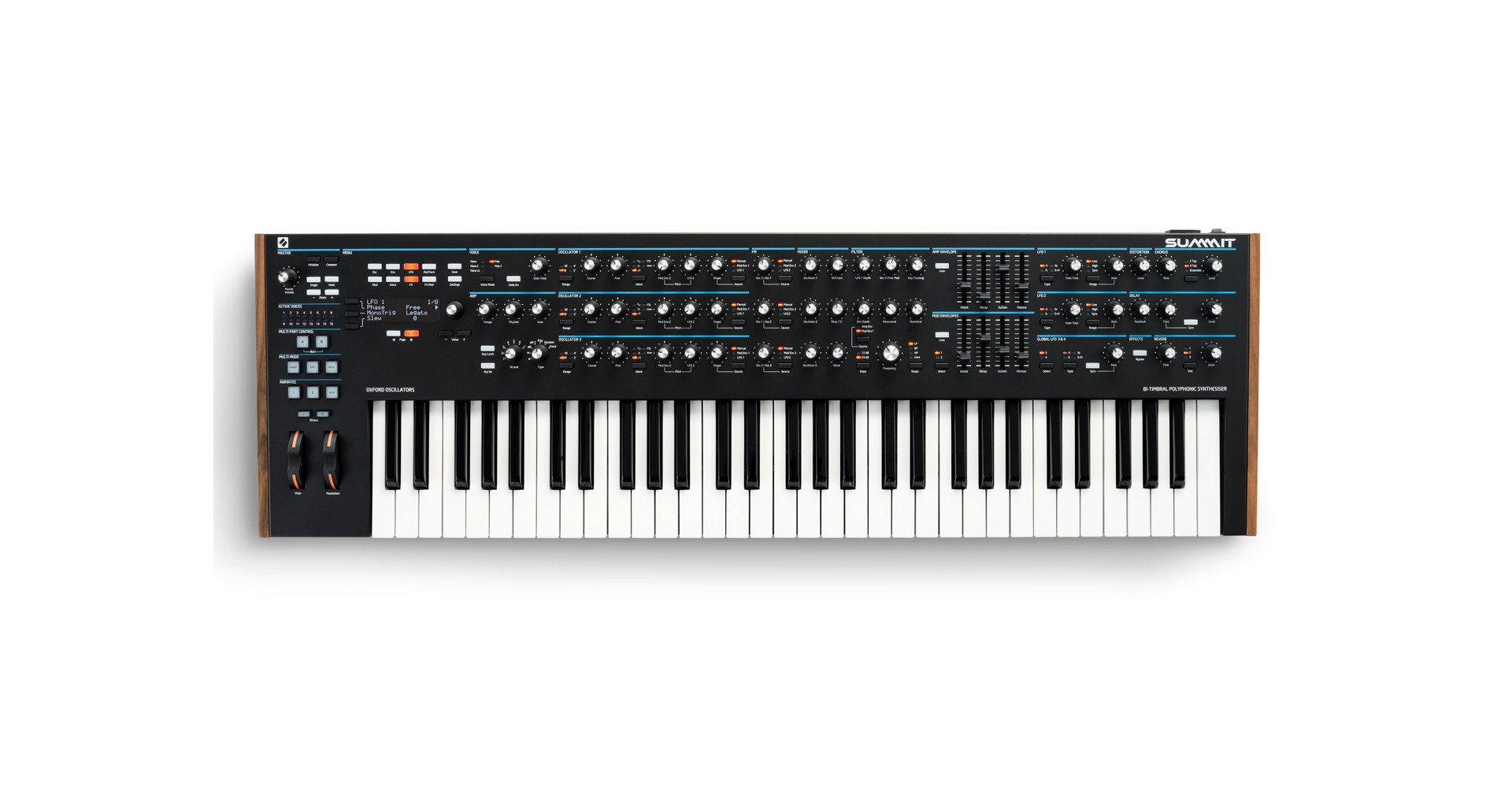

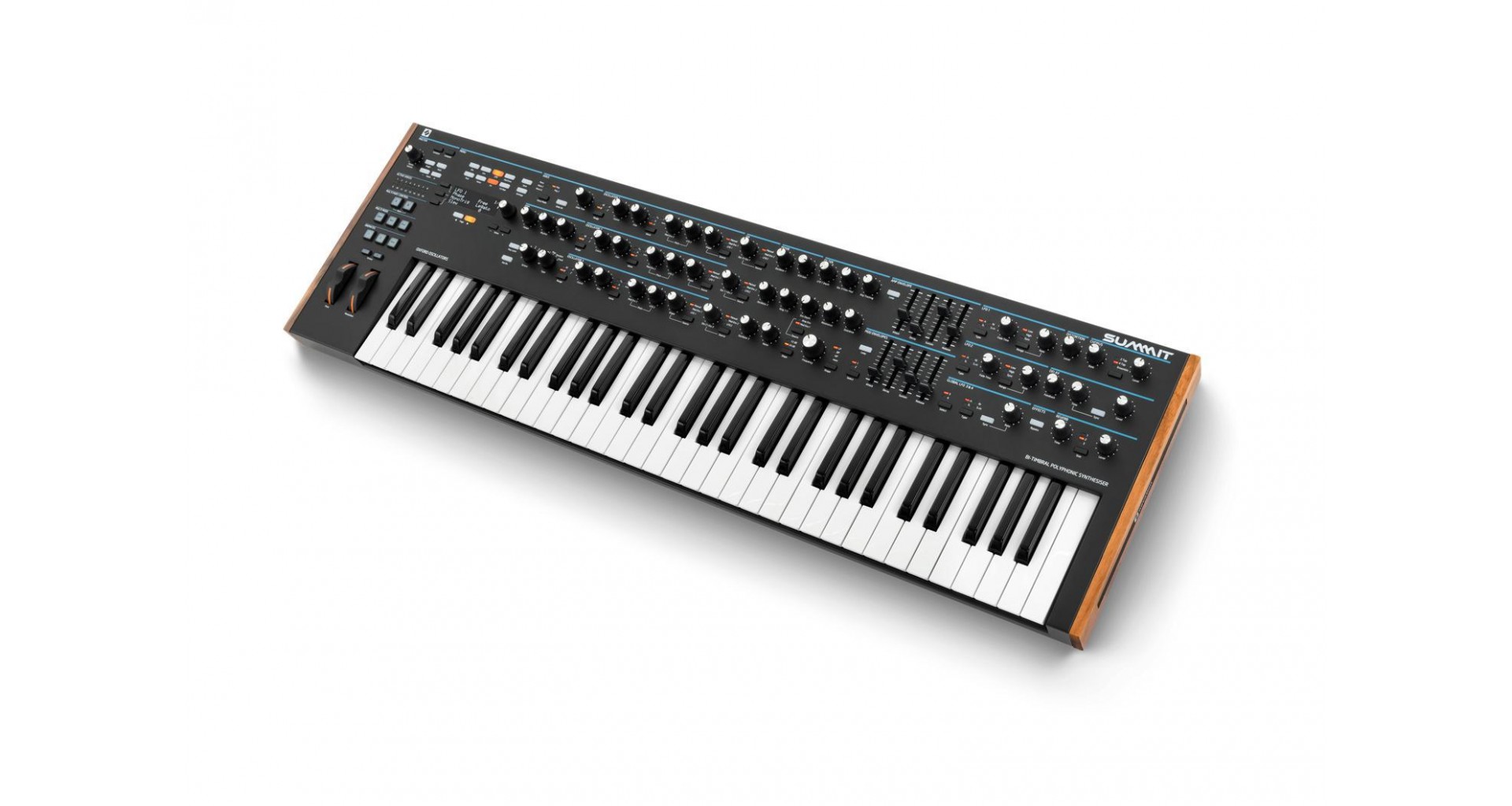

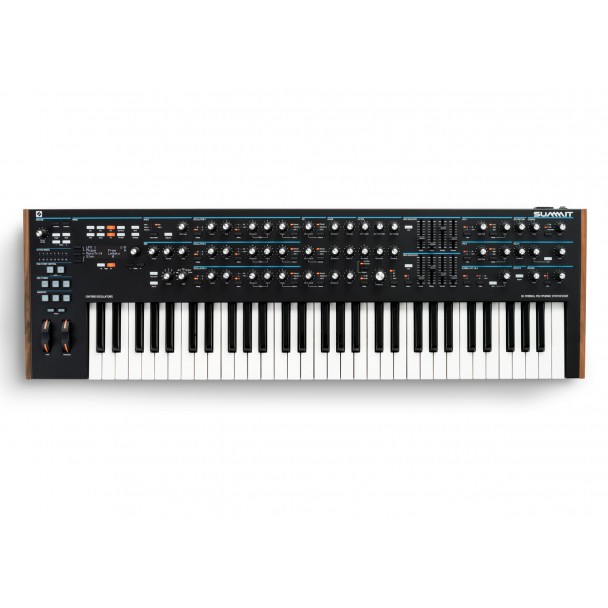

Novation Summit

Caracteristici:
- Sintetizator polifonic two-part multitimbral 16-voice
- 3 oscilatoare NCO New Oxford per voce, ce ofera sinteza subtractive, wavetable sau FM
- Filtru multimod analog 12/24dB per voce cu Dual mode
- Claviatura premium semigrea de 5 octave, cu sensibilitate la velocitate si aftertouch
- Efecte per-part: distortion, chorus, delay si reverb
- Iesiri efecte si aux stereo rutabile intern

Specificatii tehnice:

Engine sintetizator
- polifonie 16 note
- 2-part-timbral
- Moduri Layered, Split, Dual Bi-Timbral
- Moduri 5 Voi - Mono, MonoLG, Mono2, Poly, Poly2

Per voce
- 3 oscillatoare
- 1 noise generator cu HP filter control
- 1 ring modulator
- 2 LFO-uri
- 1 amp envelope si 2 mod envelopes (ADHSR + looping)
- 1 filtru

Waveform-urile includ:
- Sine, tri, sawtooth, square / pulse, plus 43 wavetable-uri de 5 waveform-uri pe rand

Filtru:
- 1 filtru OTA state variable per voce
- 12/24dB slope
- Low-pass / band-pass / high-pass / dual filter
- Filtru dual: LP >. HP, LP >. BP, HP >. BP, LP + HP, LP + BP, HP + BP, LP + LP, BP + BP, and HP + HP
- overdrive pre-filtru
- Distortion pre-filtru

Modulatie:
- 16 slot-uri de modulatieper patch
- 2 sources per destination per slot

Surse modulatie:
- Direct (depth)
- Modulation wheel
- Aftertouch (polyphonic and channel AT)
- Expression pedal 1
- Expression pedal 2
- Keyboard velocity
- LFO1 positive
- LFO1 bi-polar
- LFO2 positive
- LFO2 bi-polar
- Amp envelope
- Mod envelope 1
- Mod envelope 2
- Animate 1
- Animate 2
- CV mod input bi-polar
- Bend Up
- Bend Down

Destinatii modulatie:
- Oscillator 1-3 frequency, v-sync level, shape amount and level
- Noise source level
- Ring modulator output level
- Overall synth output level
- Filter drive, distortion, cut-off frequency and resonance
- LFO 1 and 2 frequency
- Amp env / mod env 1 / mod env 2 attack, decay and release
- FM Osc 1 ->. osc 2, osc 2 ->. osc 3, osc 3 ->. osc 1 and noise ->. osc 1
- Osc 3 ->. filter cutoff frequency
- Noise ->. filter cutoff frequency

Efecte:
- FX are per part
- Analogue distortion
- 3 chorus types
- Delay with 16 types of delay sync, LP and HP damping, slew and stereo
- 3 reverb types

Sursa Matrice FX Mod:
- Direct (depth)
- Mod wheel
- Aftertouch
- Expression pedal 1
- Expression/breath pedal 2
- Velocity
- Keyboard
- LFO 1 +/-
- LFO 2 +/-
- LFO 3 +/-
- LFO 4 +/-
- Amp envelope
- Mod envelope 1 & 2
- Animate 1 & 2
- CV +/-
- Bendwheel +/-
- Bend up
- Bend down

Destinatii Matrice FX Mod:
- Distortion level
- Chorus level
- Chorus rate
- Chorus depth
- Chorus feedback
- Delay level
- Delay time
- Delay feedback
- Reverb level
- Reverb time
- Reverb low pass
- Reverb high pass

Diverse:
- FM controls on front panel
- Global LFO 3 & 4
- Arpeggiator with key latch &ndash. 33 patterns
- Patch storage - up to 512 on hardware (ships with 256 factory patches)
- Glide control
- All knobs (excl. volume), sliders and most buttons transmit and receive MIDI cc commands for external control and mapping
- Microtuning with Scala table import and table tuning creation
- Manual mode
- Multi pot mode: Relative, Pot pick-up, Snap

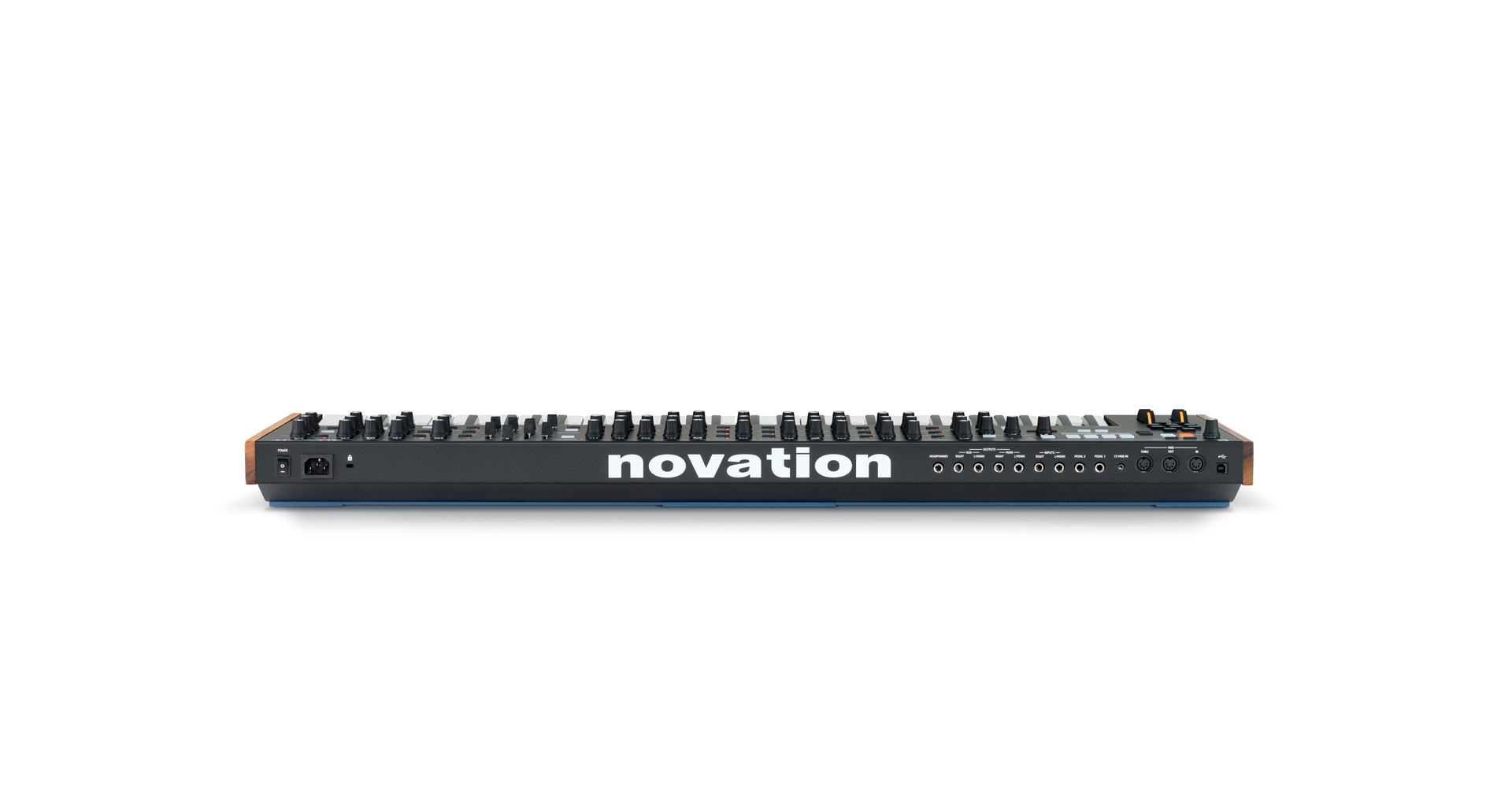

Specificatii hardware produs:
- 50 control knobs
- 8 45mm sliders
- 1 volume knob
- 1 data encoder knob
- Rubberised knob caps with spun metal discs
- 55 function buttons
- 2 Animate buttons plus hold button
- OLED display
- Kensington Lock
- Power switch
- IEC power supply connector
- USB socket for system (MIDI comms only, no bus power)
- MIDI In / Out / Thru
- 2 1/4inch jack sockets for continuous or switched pedals
- 1 3.5mm jack socket for CV in
- 2 1/4inch jack sockets for left and right outputs
- 2 1/4inch jack sockets for left and right auxiliary outputs
- 2 1/4inch jack sockets for left and right inputs
- 2 1/4inch jack socket for headphone output
- Metal chassis with American walnut wooden end cheeks
- Metal magnetic inset end pieces

Compatibilitate software:
- Ableton Live Lite is included
- Summit is a USB-MIDI class compliant device

Dimensiuni:
- 998.4 x 302.4 x 71 mm
Greutate:
- 11 kg

Pachetul contine:
- Sintetizator Novation Summit
- Cablu USB
- Ghid utilizator
- Alimentator
